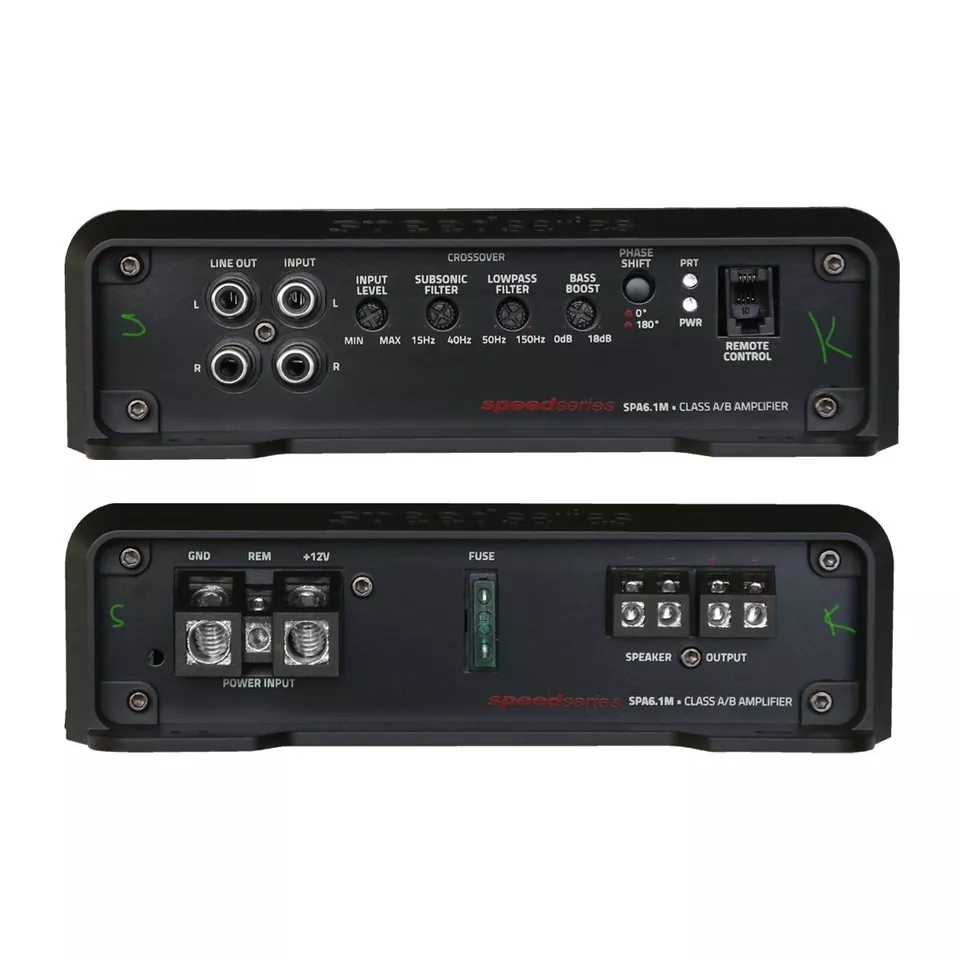

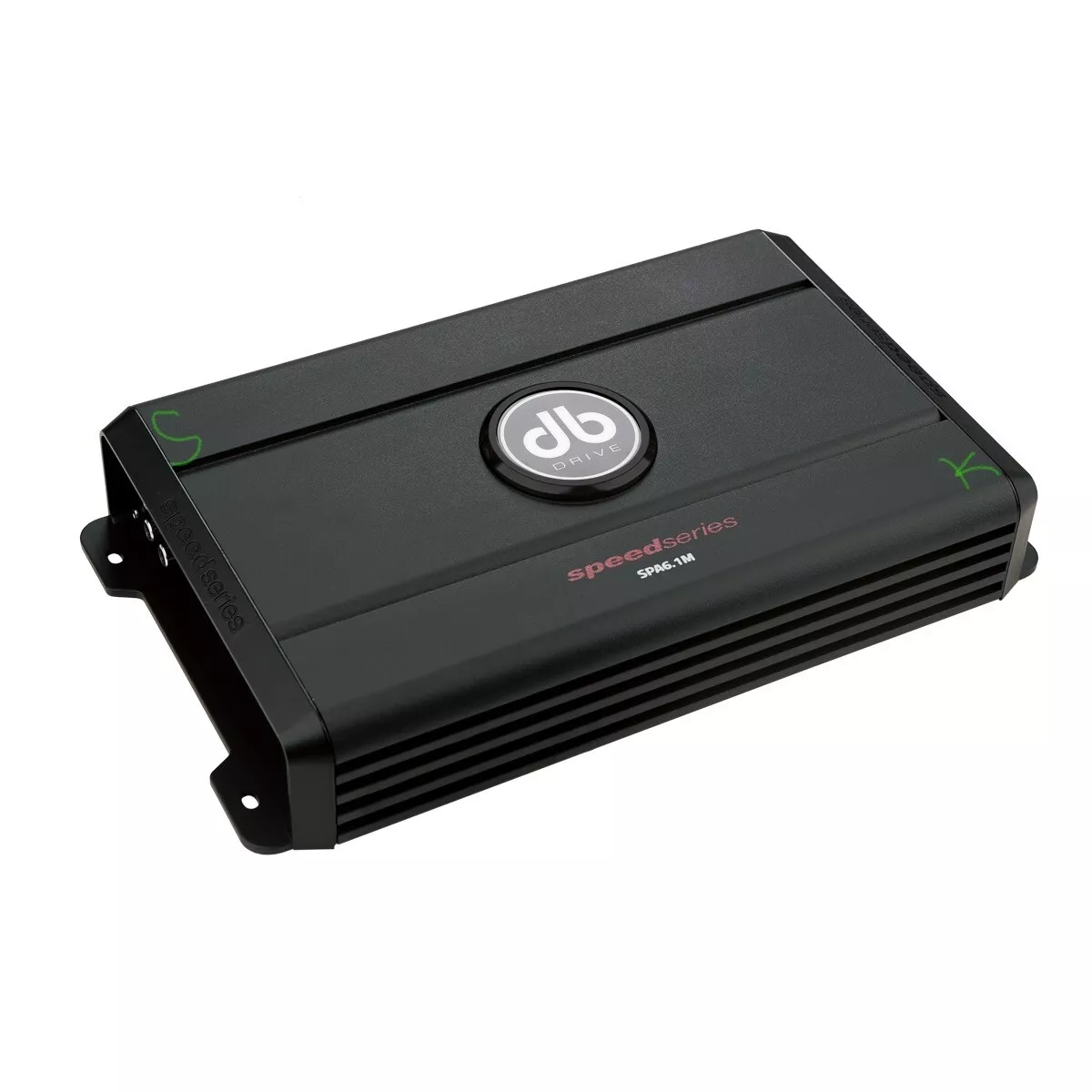

DB Drive – SPA6.1M -Speed Series 600 Watt Monoblock Class A/B
$189.00
- Class A/B Monoblock
- 2Ω Stereo load Capability
- High level RCA inputs
- 12dB Slope Variable Low-pass crossover filter
- 24db Slope Variable Sub-sonic Filter
- Remote Dash Bass Control
- Large Power cable input connectors
- Double Sided PCB
- Compatible with any 2Ω Loudspeaker
SPECIFICATIONS
Rated @14 Volts: 1 x 600 Watts @ 2Ω
1 x 300 Watts @ 4Ω
THD (1kHz @ 4Ω): 0.04%
Bandwidth (-3 dB): 18Hz- 22KHz
Input Sensitivity: 0.20MV – 5.0V RMS
Signal to Noise Ratio: 99dB
Damping Factor (1k Hz @ 4Ω): 126
- Class A/B Monoblock
- 2Ω Stereo load Capability
- High level RCA inputs
- 12dB Slope Variable Low-pass crossover filter
- 24db Slope Variable Sub-sonic Filter
- Remote Dash Bass Control
- Large Power cable input connectors
- Double Sided PCB
- Compatible with any 2Ω Loudspeaker
SPECIFICATIONS
Rated @14 Volts: 1 x 600 Watts @ 2Ω
1 x 300 Watts @ 4Ω
THD (1kHz @ 4Ω): 0.04%
Bandwidth (-3 dB): 18Hz- 22KHz
Input Sensitivity: 0.20MV – 5.0V RMS
Signal to Noise Ratio: 99dB
Damping Factor (1k Hz @ 4Ω): 126
