Mono car/marine subwoofer amplifier 600 watts RMS x 1 at 2 ohms
$599.99

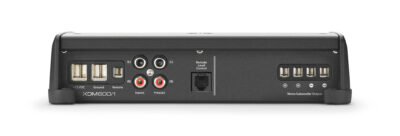

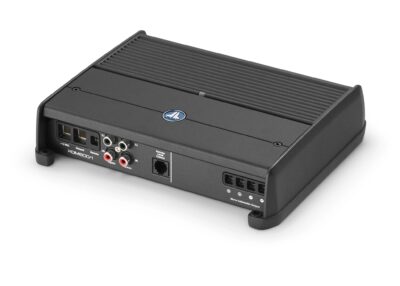

Monoblock Class D Car/Marine Subwoofer Amplifier, 600 W x 1 @ 2 ohm / 400 W x 1 @ 4 ohm – 14.4V
This potent monoblock amplifier employs our high-speed NexD switching design to achieve unprecedented efficiency and amazing power output from a very compact chassis. Don’t let its small size fool you, though… the XDM/600/1 generates serious subwoofer power, delivering a full 600 W of continuous power into a 2 ohm load (14.4V, 1% THD).
Designed for car or boat installations, the XDM600/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
Targeted specifically for subwoofer applications, the XDM600/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier’s level can be adjusted directly from the driver’s seat or captain’s chair.

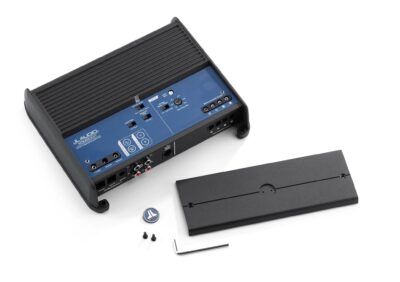

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
