JL Audio – XD-FDBU-2 2-Way MAXI Fused Distribution Block
$39.99

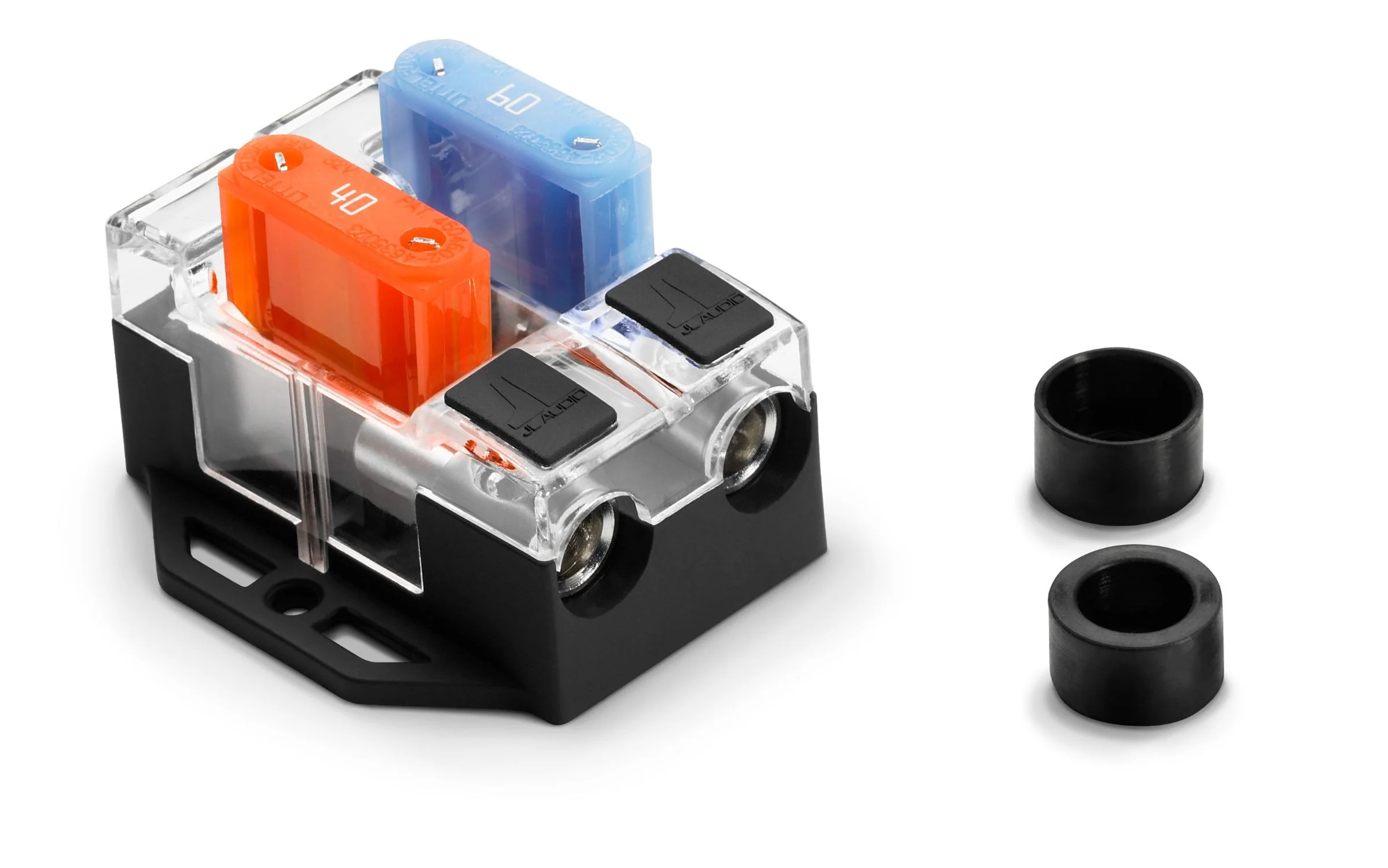

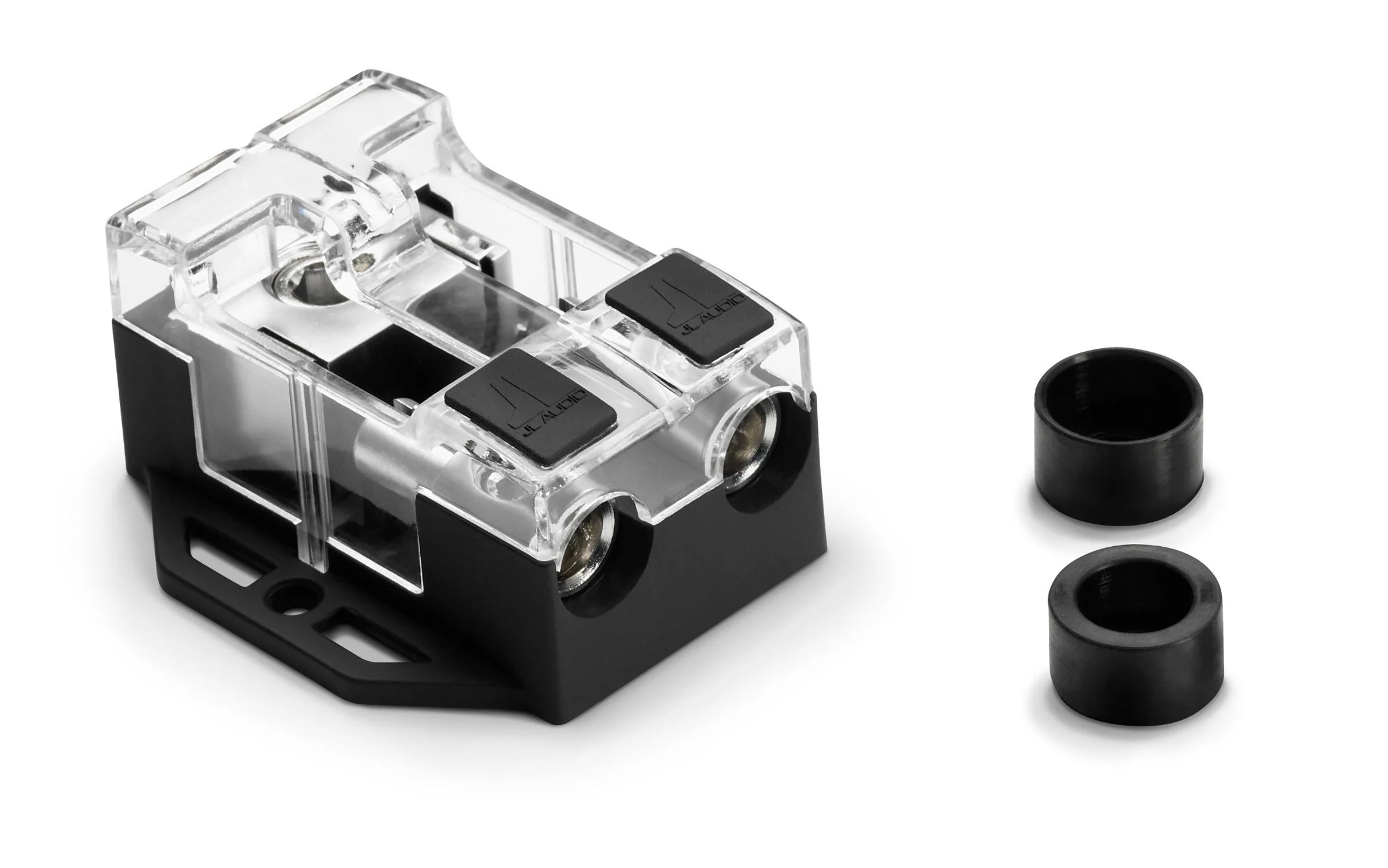

2-Way Fused Power Distribution Block
Designed to split a large wire down to two smaller wires where fusing of the small wires is needed. The input of this block accepts wire from 1/0 to 4 AWG, while the two fused outputs each accept wire from 4 AWG to 8 AWG. OmniSert receptacles capture various size wires without the need for adaptor sleeves.
Forged and machined brass construction with marine-grade stannum plating. A high-temperature polycarbonate base and cover provide insulation and protection.
Requires two MAXI Fuses, appropriately rated for the equipment being connected. These are sold separately. Fuses can be pulled and inserted without removing the cover.
2-Way Fused Power Distribution Block
Designed to split a large wire down to two smaller wires where fusing of the small wires is needed. The input of this block accepts wire from 1/0 to 4 AWG, while the two fused outputs each accept wire from 4 AWG to 8 AWG. OmniSert receptacles capture various size wires without the need for adaptor sleeves.
Forged and machined brass construction with marine-grade stannum plating. A high-temperature polycarbonate base and cover provide insulation and protection.
Requires two MAXI Fuses, appropriately rated for the equipment being connected. These are sold separately. Fuses can be pulled and inserted without removing the cover.
Brand
JL Audio
