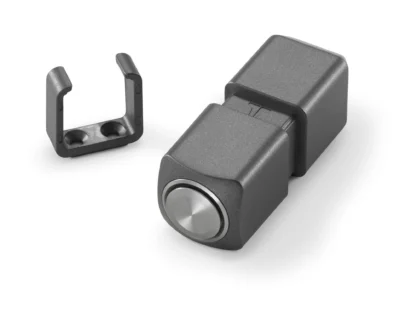

JL Audio – VXi-BTC JLid Bluetooth Communicator for VXi Amplifiers

High-Capacity Universal Battery Connector, Positive or Negative

The XB-BTU Battery Connector is ideal for larger systems that require multiple power wire connections at the battery. It is capable of receiving 1/0 AWG, 2 AWG, 4 AWG or 8 AWG wire in each of its three captured-wire connection points (in any combination). OmniSert technology ensures secure, high-integrity wire contact. Multiple bushings are included to dress the wire exits, depending on the size wire used.

The included adaptor collar allows it to be used for negative or positive battery post connections, where the secure clamping design ensures a tight fit to the battery post. Adaptors are sold separately for side-post batteries.

We also include a “factory harness adaptor”, which can be installed in one of the three wire connections to accept power rings and most factory harness battery terminations.

360 forged and machined brass construction with a high-temperature polycarbonate base and cover.

JLid Comm & Network Bridge Hub for MV & MVi Amplifiers

The MVi marine amplifier ecosystem is designed to be very flexible, offering users almost limitless combinations of amplifiers and channel architectures, along with the amazing power of integrated DSP technology.

The MVi-HUB greatly simplifies the configuration of a multi-amp system by allowing all amplifiers of an amplifier network to appear in a single TüN software session. Networking synchronizes the DSP presets of all amplifiers and distributes commands from a single, optional Digital Remote Controller (M-DRC-50 or DRC-205, sold separately) across the entire amplifier network. DRC commands can include Master Volume, Subwoofer Level, Fader, Zone Level and Preset Selection (functionality varies by model).

The MVi-HUB includes JLid-COMM ports to connect up to six amplifiers (one “Master” MVi amplifier and up to five “Slave” MV or MVi amplifiers) using standard CAT5e cables, allowing users to quickly switch between amplifiers during the tuning process, without disconnecting and connecting multiple cables.

A dedicated JLid-CTRL accessory port is also included to connect an optional DRC or VXi-BTC Bluetooth Communicator (each sold separately). The VXi-BTC accessory enables convenient wireless setup and tuning of the entire amplifier network using a compatible iOS or Android device with the TüN Mobile App.

For ease of connection, the MVi-HUB is powered via connected amplifiers and requires no separate power or turn-on wiring (Note: MVi-HUB operation requires at least one “Master” MVi amplifier connection.)

MVi-HUB includes the following features:

• JLid-COMM Connections: 1 Master Input / 5 Slave Outputs
• JLid-CTRL Connections: 1 Accessory Port
• Amp Identifier Status LEDs
• Powered via JLid connection to MVi amplifiers
