JL Audio – SB-T-4RNRG5/10TW3 Stealthbox Enclosed Subwoofer for 2010-Up Toyota 4Runner
$1,699.99
Stealthbox for 2010-Up Toyota 4Runner
The 5th Generation 4Runner has been long-overdue for a Stealthbox solution. When we finally approached the challenge, we knew owners cared about the vehicle’s cargo space and we didn’t want to interfere with OEM cargo slides or aftermarket cargo drawer systems. The result is the addition of a spectacular 400 watt, 10-inch subwoofer solution tucked nicely behind the factory cargo panel.

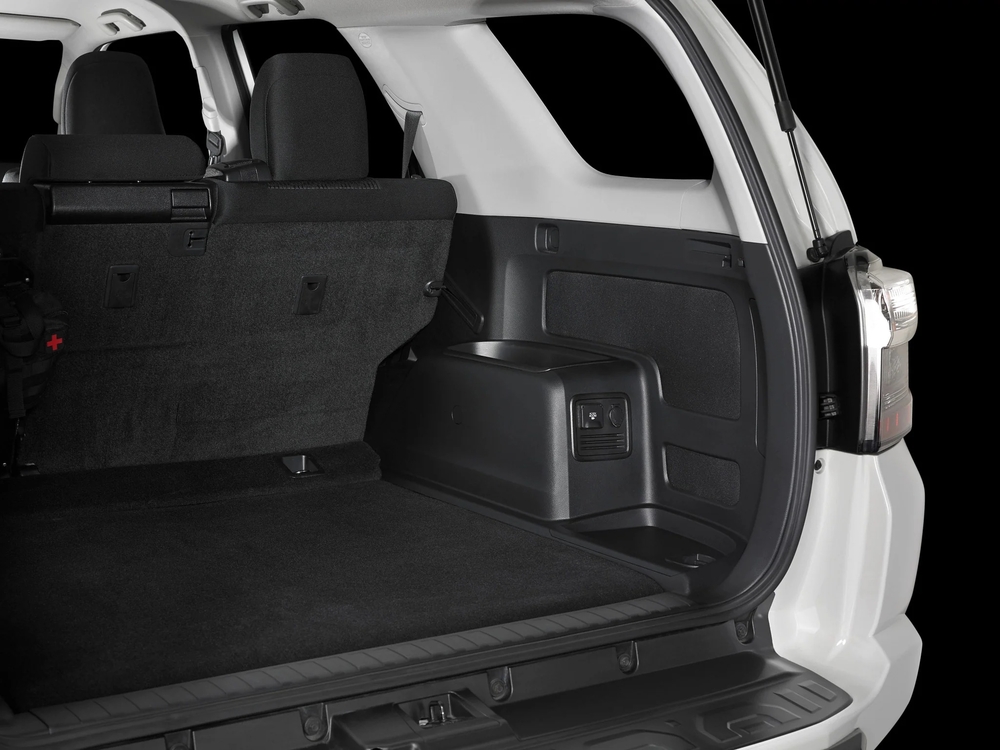

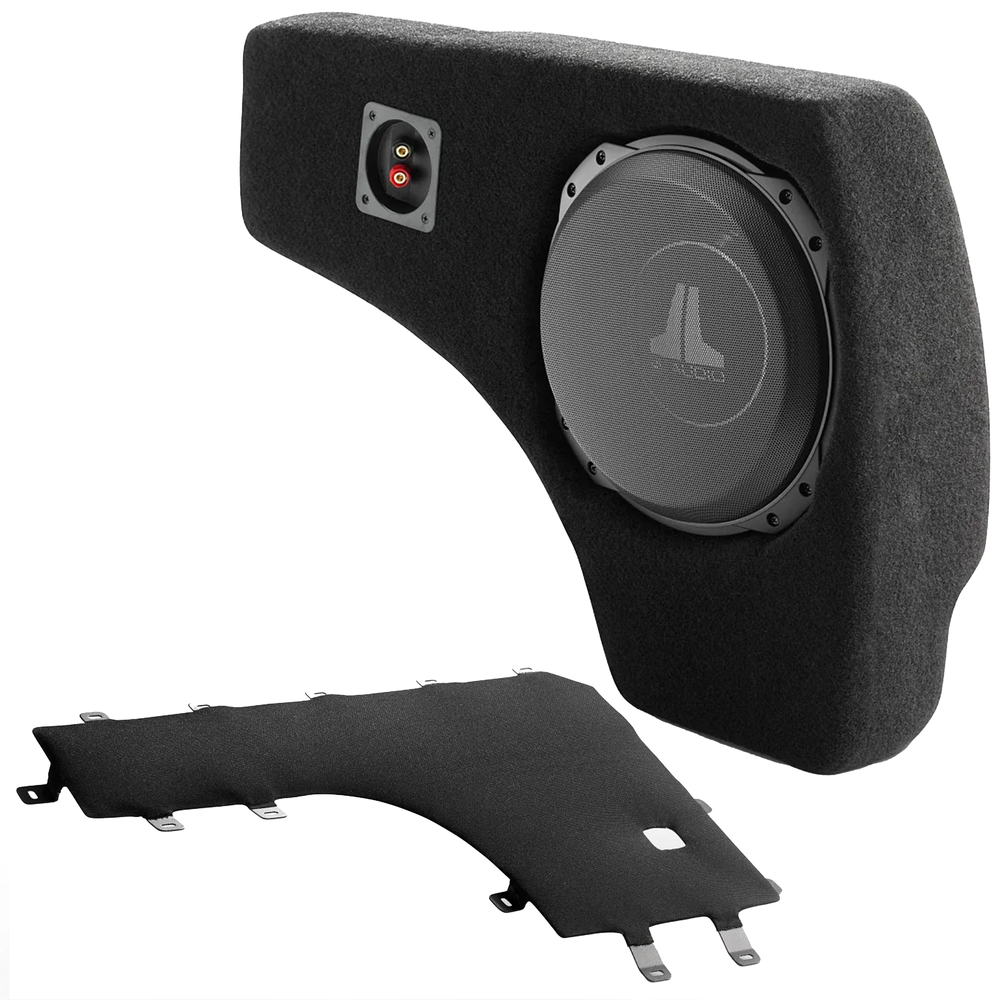

The Hard Data: Contains one 10TW3-D4 subwoofer in a sealed enclosure. 400 watt power handling. Wired for 2 ohm mono. Installs behind factory panel in the passenger side rear cargo area. Subwoofer is protected by the included black steel mesh grille and concealed by a fabric grille. Installation requires permanent modification to the factory panel. Installation in models equipped with an “OEM” subwoofer require purchase of a standard factory panel from Toyota Parts. Will not fit models with third row seating.
Stealthbox for 2010-Up Toyota 4Runner
The 5th Generation 4Runner has been long-overdue for a Stealthbox solution. When we finally approached the challenge, we knew owners cared about the vehicle’s cargo space and we didn’t want to interfere with OEM cargo slides or aftermarket cargo drawer systems. The result is the addition of a spectacular 400 watt, 10-inch subwoofer solution tucked nicely behind the factory cargo panel.
The Hard Data: Contains one 10TW3-D4 subwoofer in a sealed enclosure. 400 watt power handling. Wired for 2 ohm mono. Installs behind factory panel in the passenger side rear cargo area. Subwoofer is protected by the included black steel mesh grille and concealed by a fabric grille. Installation requires permanent modification to the factory panel. Installation in models equipped with an “OEM” subwoofer require purchase of a standard factory panel from Toyota Parts. Will not fit models with third row seating.
Brand
JL Audio
