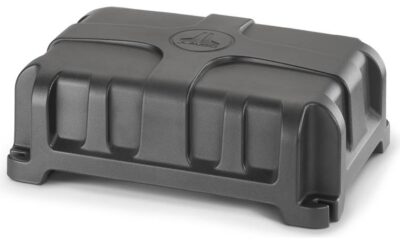

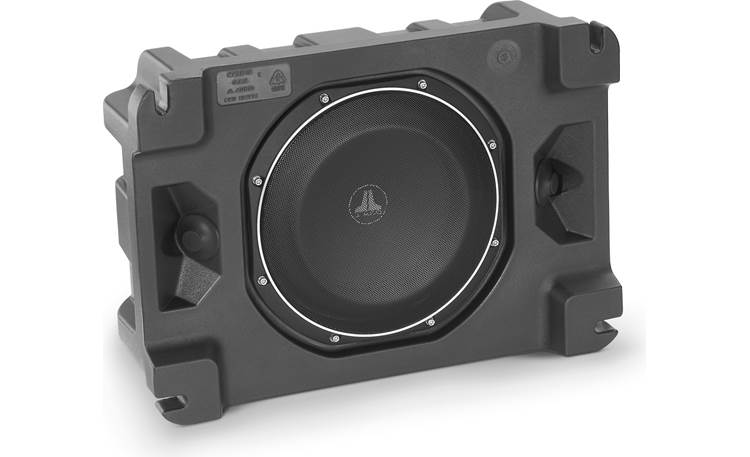

JL Audio PES110-TW1-4 StowAway sealed downward-firing enclosure with one 10TW1-4 4-ohm shallow-mount subwoofer
$799.99
Enclosed Subwoofer System with Single 10TW1-4 Subwoofer, Black Texture Finish (300 watts, 4 ohms)
StowAway subwoofer systems are engineered to deliver amazing subwoofer performance in challenging environments and applications.
Featuring a down-firing hard-shell design, StowAway subwoofers are well suited for mounting areas shared with cargo or exposed to the elements. Constructed from marine-grade materials, this low-profile enclosure design harnesses the incredible small box requirements of the TW1 subwoofer to generate smooth and powerful bass from a remarkably compact enclosure. Slotted mounting feet located at each corner of the enclosure’s base assist with “off-the-floor” installations or in tight spaces where access is limited.
The StowAway subwoofer system is prewired with selectable harness exits located underneath at opposite ends.
- Finish: black texture with debossed logo on top; a protective mesh grille is included to protect the subwoofer
- Recommended amplifier power: 75–300 watts
- Nominal Impedance: 4 ohms
Note: Mounting hardware is not included with StowAway systems. The installation method and mounting hardware used will vary based on the requirements of your specific application. The final mounting method must affix the enclosure securely to prevent movement and vibration.
| Continuous Power Handling (RMS) | 300 W |
| System Nominal Impedance | 4 Ω |
| Enclosure Type | Sealed |
| Finish | Black Texture |
| Grille Included | Yes |
| Height (H) | 7.0 in / 178 mm |
| Width (W) | 18.0 in / 457 mm |
| Depth (D) | 12.5 in / 318 mm |
| Mounting Location Depth (A) | 10.66 in / 271 mm |
| Mounting Location Width (B) | 16.16 in / 410 mm |
Enclosed Subwoofer System with Single 10TW1-4 Subwoofer, Black Texture Finish (300 watts, 4 ohms)
StowAway subwoofer systems are engineered to deliver amazing subwoofer performance in challenging environments and applications.
Featuring a down-firing hard-shell design, StowAway subwoofers are well suited for mounting areas shared with cargo or exposed to the elements. Constructed from marine-grade materials, this low-profile enclosure design harnesses the incredible small box requirements of the TW1 subwoofer to generate smooth and powerful bass from a remarkably compact enclosure. Slotted mounting feet located at each corner of the enclosure’s base assist with “off-the-floor” installations or in tight spaces where access is limited.
The StowAway subwoofer system is prewired with selectable harness exits located underneath at opposite ends.
- Finish: black texture with debossed logo on top; a protective mesh grille is included to protect the subwoofer
- Recommended amplifier power: 75–300 watts
- Nominal Impedance: 4 ohms
Note: Mounting hardware is not included with StowAway systems. The installation method and mounting hardware used will vary based on the requirements of your specific application. The final mounting method must affix the enclosure securely to prevent movement and vibration.
| Continuous Power Handling (RMS) | 300 W |
| System Nominal Impedance | 4 Ω |
| Enclosure Type | Sealed |
| Finish | Black Texture |
| Grille Included | Yes |
| Height (H) | 7.0 in / 178 mm |
| Width (W) | 18.0 in / 457 mm |
| Depth (D) | 12.5 in / 318 mm |
| Mounting Location Depth (A) | 10.66 in / 271 mm |
| Mounting Location Width (B) | 16.16 in / 410 mm |
