JL Audio MX500/4 Compact marine/powersports 4-channel amplifier — 70 watts RMS x 4
$449.99
4-Channel Class D Full-Range Amplifier, 125 W x 4 @ 2 Ω / 70 W x 4 @ 4 Ω – 14.4V
Engineered specifically for powersports applications, the 4-channel MX500/4 amplifier employs our high-speed NexD switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
Generating a solid 70W x 4 into 4 ohms (14.4V, 1% THD), the MX500/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 250W x 2 into 4 ohms.
Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
4-Channel Class D Full-Range Amplifier, 125 W x 4 @ 2 Ω / 70 W x 4 @ 4 Ω – 14.4V
Engineered specifically for powersports applications, the 4-channel MX500/4 amplifier employs our high-speed NexD switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
Generating a solid 70W x 4 into 4 ohms (14.4V, 1% THD), the MX500/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 250W x 2 into 4 ohms.
Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
Brand
JL Audio
Related Products
Related products
- Marine Amplifiers

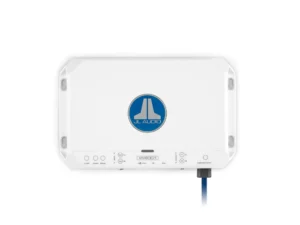

JL Audio – MV600/1 Monoblock Class D Marine Subwoofer Amplifier, 600 W
Monoblock Class D Marine Subwoofer Amplifier, 600 W x 1 @ 2 Ω / 400 W x 1 @ 4 Ω – 14.4V
MV monoblock subwoofer amplifiers are engineered to deliver outstanding bass performance and fidelity, with exceptional efficiency in marine applications.
All MV monoblock amplifiers are specifically designed to receive their input signals from the pre-outs of a full-range MVi amplifier, from which they will also receive all signal processing. For this reason, MV monoblock amplifiers have no onboard signal processing, other than a basic input sensitivity setting.
Instead of traditional control knobs and switches, MV amplifiers are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN Software application installed.
Equipped with an exclusive, low-frequency variant of our NexD2 switching amplifier technology, the MV600/1 monoblock subwoofer amplifier generates up to 400 watts into 4 ohms, or a powerful 600 watts into 2 ohms. Housed in a compact, cast alloy chassis with marine-grade powder coat finish, the MV600/1 is outfitted with corrosion-resistant hardware and connectors.
Amplifier includes: Power Connector (for 4 AWG wire), Subwoofer Output Harness, 6 ft A/B USB Cable
Features:
Simple Setup via PC, Tablet or Smartphone
- TüN Software delivers fast and easy setup, at your fingertips. Make all adjustments with a clear interface. Free TüN software is available for computers and most handheld devices.
2nd-Gen NexD2 Switching Amplifier Technology
- Advanced, high-speed switching technology delivers superb low frequency power and efficiency.
- Latest generation of DirectFET MOSFET Output Devices.
- Specially optimized for subwoofer applications.
Ultra-Versatile Analog and Digital Inputs/Outputs
- Differential-Balanced Analog Inputs accept a wide range of signals levels (up to 8V RMS), offering outstanding noise rejection for clean, clear audio.
- Analog, Pass-Through Pre-Outs (4V RMS)
JLid System Command and Control with Networking Capabilities
- Proprietary JL Audio protocol provides control interface and all communication for VXi amplifiers and optional JLid accessories, including:
VXi-BTC Bluetooth Communicator: Adds wireless connectivity for amplifier configuration from a compatible iOS or Android device.
M-DRC-50 or DRC Controllers: Wired remotes offer preset selection and adjustments of levels, fader and balance from the helm or driver’s seat. (Connectivity/functionality varies by model.)MVi-HUB JLid-COMM and Network Hub: Provides network connectivity for up to six MVi amplifiers (one master and five slave amplifiers) for full-system DRC control and Preset selection.SKU: JL Audio - MV600/1 - Marine Amplifiers
JL Audio MX500/1 Compact marine/powersports mono amplifier — 500 watts RMS x 1 at 2 ohms
Marine AmplifiersJL Audio MX500/1 Compact marine/powersports mono amplifier — 500 watts RMS x 1 at 2 ohms
Monoblock Class D Wide-Range Amplifier, 500 W x 1 @ 2 Ω / 300 W x 1 @ 4 Ω – 14.4V
Engineered specifically for powersports applications, the MX500/1 monoblock amplifier employs our high-speed NexD switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
With a robust 500W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX500/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch.
Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver’s seat.
This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
SKU: JL Audio-MX500/1 - Marine Amplifiers
JL Audio MX300/1 Compact marine/powersports mono amplifier — 300 watts RMS x 1 at 2 ohms
Marine AmplifiersJL Audio MX300/1 Compact marine/powersports mono amplifier — 300 watts RMS x 1 at 2 ohms
Monoblock Class D Wide-Range Amplifier, 300 W x 1 @ 2 Ω / 160 W x 1 @ 4 Ω – 14.4V
Engineered specifically for powersports applications, the MX300/1 monoblock amplifier employs our high-speed NexD switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
With a robust 300W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX300/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch.
Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver’s seat.
This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
SKU: JL Audio-MX300/1 - Car Amplifiers, Marine Amplifiers
JL Audio XDM200/2 2-channel car/marine amplifier — 75 watts RMS x 2
Car Amplifiers, Marine AmplifiersJL Audio XDM200/2 2-channel car/marine amplifier — 75 watts RMS x 2
2-Channel Class D Full-Range Car/Marine Amplifier, 100 W x 2 @ 2 Ω / 75 W x 2 @ 4 Ω – 14.4V
The tiny XDM200/2 packs a serious full-range punch, delivering a staggering 100 watts per channel into 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.
Suitable for car or boat installations, the XDM200/2 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM200/2 includes a 12 dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier’s level can be adjusted directly from the driver’s seat or cockpit.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
SKU: JL Audio-XDM200/2
