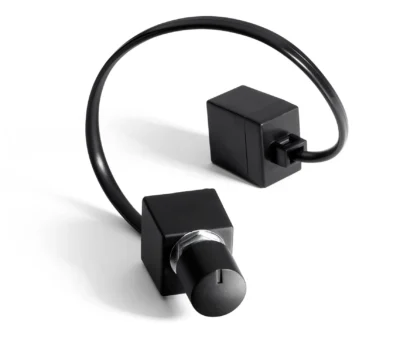

JL Audio – HD-RLC Amplifier Remote Level Control and Cable

Water-Resistant Remote Level Control for MX Monoblock Amplifiers or any JL Audio Monoblock with a “Remote Bass Control” port.

The M-RBC-1 controls the Bass Level and features a water resistant connection cover designed for use with the following JL Audio amplifiers:

MX-Series: MX300/1 (in Low Pass Mode)
MX-Series: MX500/1 (in Low Pass Mode)
MX-Series: MX600/3 (Subwoofer Channel)
HX-Series (discontinued): HX300/1 (in Low Pass Mode)
MHX-Series (discontinued): MHX300/1 (in Low Pass Mode)

The M-RBC-1 controls the Bass Level of the following JL Audio amplifiers:

JX-Series: JX250/1, JX500/1, JX500/1D, JX1000/1D ( also available)

When the M-RBC-1 is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.

The M-RBC-1 remotely controls the Bass EQ boost feature of the following JL Audio amplifiers:

Slash v3 Series: 600/1v3, 1200/1v3
Slash v2 Series: 250/1v2, 500/1v2, 1000/1v2, 450/4v2
Original Slash Series: 500/1, 1000/1, 450/4, 500/5
G-Series: All Models
A-Series: All Models
e-Series: All Models (including marine versions)
M-Series: M1400, M1700, M2150, M2250, M4300, M4500, M6450, M6600

When the M-RBC-1 is connected to the above amplifiers, the on-board “Boost” control of the amplifier is defeated and the RBC-1 becomes the active controller.

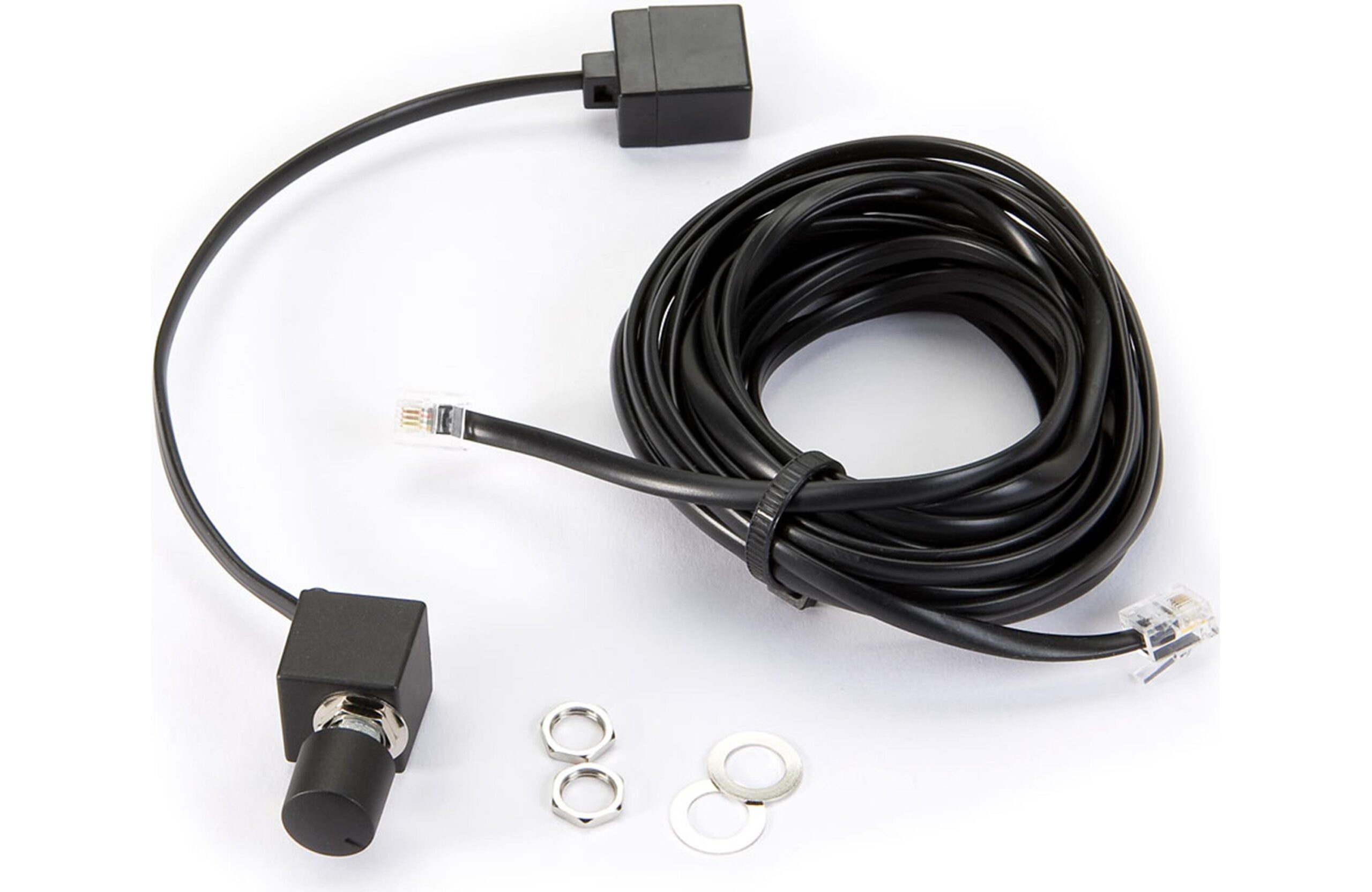

The M-RBC-1 rotary control is IPX6 water-resistant (splash-proof, not submersible) and includes a black ABS knob, mounting hardware and one 16.4 ft (5 m) cable.

Wireless, NMEA 2000 Remote Controller System for use with MediaMaster
(Note: This product is designed to connect directly to your vessel’s NMEA 2000 network only.)

Utilizing state-of-the-art, wireless technology, the MMR-11W-N2K NMEA 2000 Remote Controller System delivers the ultimate in handheld control functionality for your MediaMaster.

Operating at an ultra-high frequency of 2.4 GHz, the MMR-11W-N2K’s key-fob style transmitter and receiver module permit long-range, wireless control of your NMEA 2000 equipped MediaMaster source unit, from up to 150 ft. (45 m) away. The MMR-11W-N2K transmitter features a sealed, water-resistant (IP67 rated) design, that floats and large, raised buttons for easy, on-the-move access. A verification LED is also integrated within the transmitter to provide real-time, visual confirmation (2-way) of broadcasted signals. The hideaway receiver module  connects directly to your vessel’s NMEA 2000 network and is programmable, with the ability to add additional (up to twenty) MMR-11W-Remote transmitters (sold separately).

Both transmitter and receiver module are constructed using UV and salt-water rated materials and built to withstand the outdoor elements. For added convenience, a quick-release lanyard and mounting cradle are also included. The cradle’s versatile design permits installation to any flat surface or a tubular structure, such as a pipe/rail or steering wheel. MMR-11W-N2K’s transmitter includes replaceable CR2032 battery.

MediaMaster remote control functions include:

• Power On/Off
• Source Select
• Volume Up/Down
• Track Up/Down (USB & BT)
• Track Fast-Forward/Fast-Rewind (USB)
• Favorite Up/Down (Tuner)
• Play/Pause (USB & BT)
• Mute/Unmute (Tuner & Aux)
