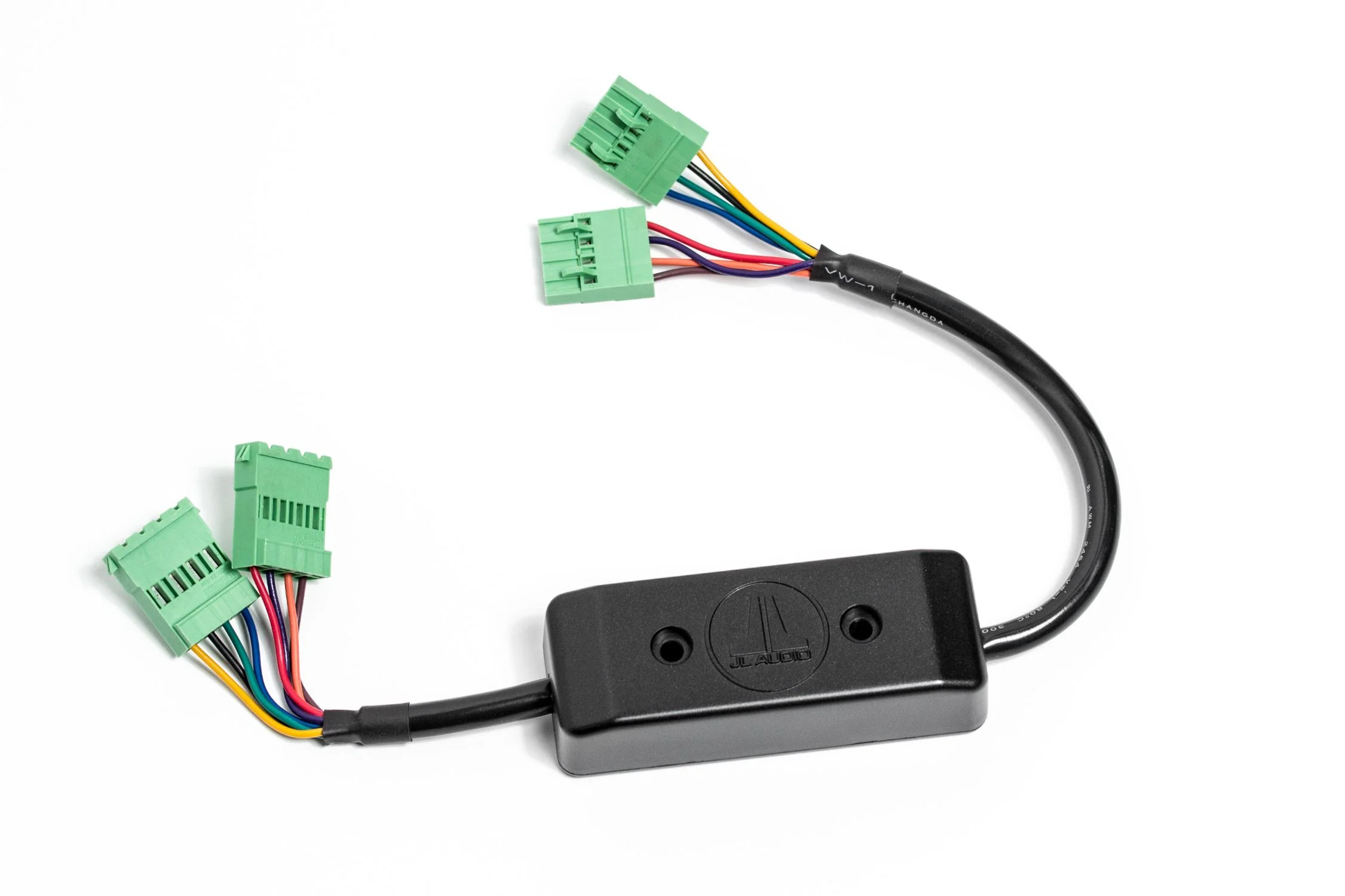

JL Audio – FiX-LSA-4 4-Ch. Load Sensing Adaptor for use with FiX OEM Integration DSP
$44.99
4-Ch. Load-Sensing Adaptor for use with FiX 82 or FiX 86 OEM Integration DSP
Some factory audio amplifiers employ a load detection circuit that looks for a low-impedance load in order to enable audio output. When a high-impedance load, like the input section of a FiX DSP, is connected to these factory amplifiers, the audio signal will mute.
The FiX-LSA-4 is designed to provide a low enough load impedance to enable audio output in most of these situations. Simply disconnect the input connectors from the FiX DSP, insert the FiX-LSA-4 in-line and recalibrate with the FiX-LSA-4 in place. Note: An additional FiX-LSA-4 will be necessary if your FiX is connected to more than four channels of audio from your OEM head unit or amplifier.
4-Ch. Load-Sensing Adaptor for use with FiX 82 or FiX 86 OEM Integration DSP
Some factory audio amplifiers employ a load detection circuit that looks for a low-impedance load in order to enable audio output. When a high-impedance load, like the input section of a FiX DSP, is connected to these factory amplifiers, the audio signal will mute.
The FiX-LSA-4 is designed to provide a low enough load impedance to enable audio output in most of these situations. Simply disconnect the input connectors from the FiX DSP, insert the FiX-LSA-4 in-line and recalibrate with the FiX-LSA-4 in place. Note: An additional FiX-LSA-4 will be necessary if your FiX is connected to more than four channels of audio from your OEM head unit or amplifier.
Brand
JL Audio
