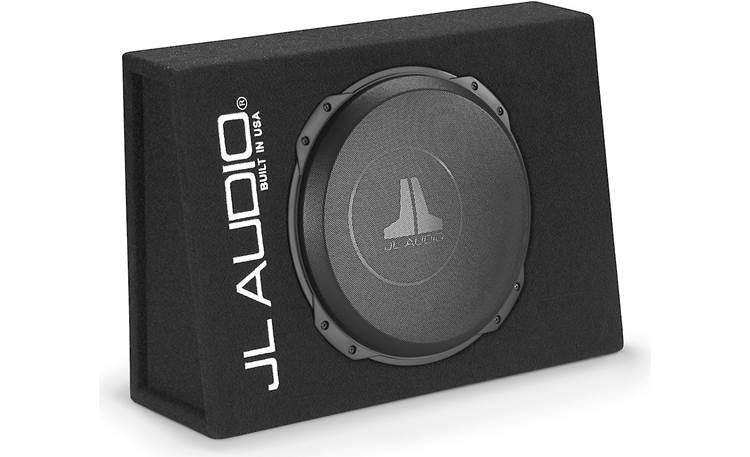

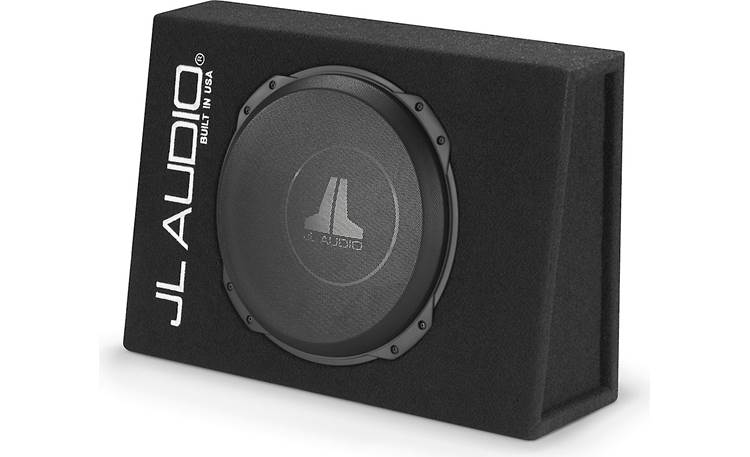

JL Audio CS112TG-TW3 Sealed PowerWedge truck-style enclosure with one 12″ TW3 subwoofer

TW1 12-inch Subwoofer (300 W, 4 ohm)

Built on JL Audio’s patented thin-line subwoofer technology, the 12TW1 delivers a powerful combination of shallow mounting depth and excursion capability, while operating in insanely small enclosures (0.65 cu.ft. / 18.4 liters). This, combined with a special cast alloy frame design, makes the 12TW1 capable of operating in extremely tight spaces. These include under-seat installations in trucks, 2-seat sports cars and many other creative applications requiring a compact, low profile subwoofer design.

JL Audio’s patented thin-line woofer technology compresses the architecture of the 12TW1 using a “concentric tube” structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of a large motor structure further forward in the speaker than with conventional designs.

The 12TW1 also features a clever frame design that minimizes the frontal clearance required for the excursion of the driver. This is accomplished by recessing the suspension attachment surface, so that most of the forward excursion occurs within the frame’s dimensions. Thanks to this feature, the 12TW1 requires only 0.87 inches (22 mm) of frontal clearance, even with its grille installed. This allows for more efficient use of space and increased enclosure volume within a given overall depth.

Even though the 12TW1 is optimized for an enclosure much smaller than any other JL Audio twelve-inch Subwoofer, it never sounds like a big woofer struggling in a tiny box…instead, it delivers all the rich, deep, controlled bass you have come to expect from a JL Audio subwoofer system.

– Very shallow mounting depth (4.62 in / 117 mm)
– No pole vent: permits mounting close to rear wall of enclosure
– Extremely small sealed enclosure volume requirements
– Long linear excursion capability (0.40 in / 10 mm, one-way)
– DMA-optimized motor design
– Patented “concentric tube” architecture
– Patented “floating cone attach method” technology
– Cast alloy frame with flat edges for tight driver grouping
– Injection molded, mica-filled polypropylene cone
– Rubber surround
– Steel mesh grille included with each driver

TW3 10-inch Subwoofer (400 W, dual 4 ohm voice coils)

Building on the core technology of our TW5 thin-line subwoofers, the TW3’s deliver a powerful combination of shallow mounting depth and excursion capability. In fact, they are capable of greater excursion than the W3v3’s.

To allow this remarkable feat to be achieved, JL Audio’s patented thin-line woofer technology compresses the architecture of the TW3’s using a concentric tube structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of the large motor structure further forward in the speaker than with conventional designs.

TW3’s are optimized for small enclosures and offer our tab-ear mounting design to maximize cone area within their mounting footprints. We know you’re going to love working with these amazing Subwoofers.

Deep, powerful and accurate JL Audio bass is now possible in more applications than ever.

– Very shallow mounting depth (3.25 / 3.50 Inches)
– No pole vent: permits mounting close to rear wall of enclosure.
– Very small sealed enclosure volume requirements
– Very long linear excursion capability (0.60 In / 15.2 mm, one-way)
– DMA-optimized motor designs
– concentric tube architecture
– Patented ?floating cone attach method? technology
– Cast alloy frame
– Injection molded, mica-filled polypropylene cone
– Rubber surround
– Aluminum-alloy dust cap and rear cap with JL Audio logo
– Precision-built in USA at JL Audio’s Miramar, Florida factory with global components
