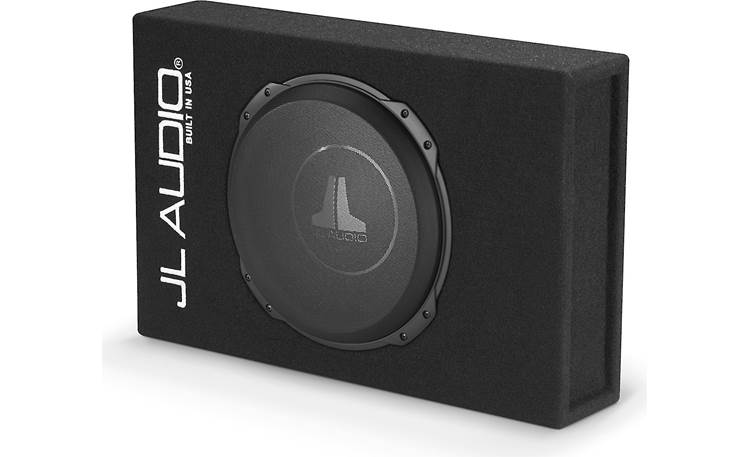

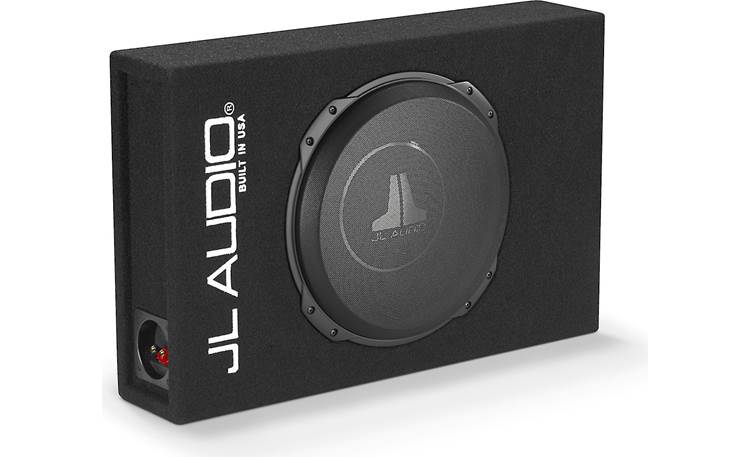

JL Audio CS112LG-TW3 Sealed PowerWedge enclosure with one 12″ TW3 subwoofer
$799.99
Enclosed Subwoofer System with Single 12TW3-D4 Subwoofer, Black Carpet (400 W, 2 Ω) – Sealed Enclosure
In this low-profile PowerWedge subwoofer system, we harness the performance of the 12TW3 to deliver amazing sub-bass from an enclosure that is only 5.0625 in. (129 mm) deep.
This low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 12TW3-D4 and has been fine-tuned through extensive real-world listening.
The PowerWedge subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with “JL AUDIO” embroidered in silver on the front baffle. A steel mesh grille is included to protect the Subwoofer.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 100 – 400W
Nominal Impedance: 2 Ω
GENERAL SPECIFICATIONS
| Continuous Power Handling (RMS) | 400 W |
| System Nominal Impedance | 2 Ω |
| Enclosure Type | Sealed |
| Finish | Black carpet |
| Grille Included | Black Steel Mesh |
PHYSICAL SPECIFICATIONS
| External Width (W) | 23.75 in / 603 mm |
| External Height (H) | 15.625 in / 397 mm |
| External Depth (D1) | 5.0625 in / 129 mm |
| Net Weight | 30.5 lb / 13.8 kg |
Enclosed Subwoofer System with Single 12TW3-D4 Subwoofer, Black Carpet (400 W, 2 Ω) – Sealed Enclosure
In this low-profile PowerWedge subwoofer system, we harness the performance of the 12TW3 to deliver amazing sub-bass from an enclosure that is only 5.0625 in. (129 mm) deep.
This low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 12TW3-D4 and has been fine-tuned through extensive real-world listening.
The PowerWedge subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with “JL AUDIO” embroidered in silver on the front baffle. A steel mesh grille is included to protect the Subwoofer.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 100 – 400W
Nominal Impedance: 2 Ω
GENERAL SPECIFICATIONS
| Continuous Power Handling (RMS) | 400 W |
| System Nominal Impedance | 2 Ω |
| Enclosure Type | Sealed |
| Finish | Black carpet |
| Grille Included | Black Steel Mesh |
PHYSICAL SPECIFICATIONS
| External Width (W) | 23.75 in / 603 mm |
| External Height (H) | 15.625 in / 397 mm |
| External Depth (D1) | 5.0625 in / 129 mm |
| Net Weight | 30.5 lb / 13.8 kg |
Brand
JL Audio
