JL Audio CS110TG-TW3 Sealed PowerWedge enclosure with one 10″ TW3 subwoofer
$699.99

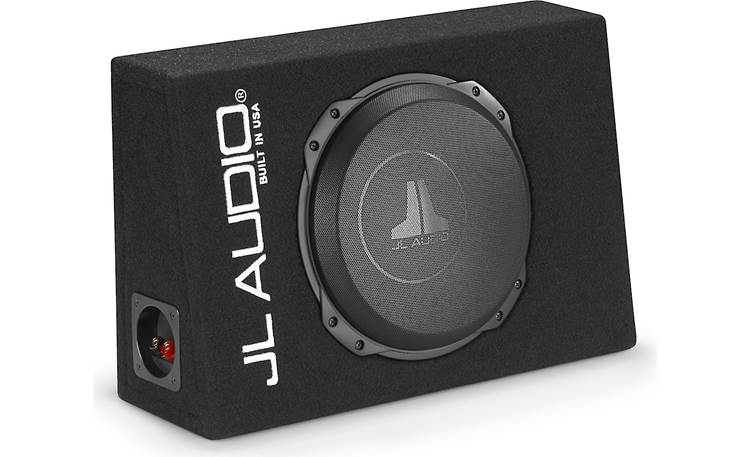

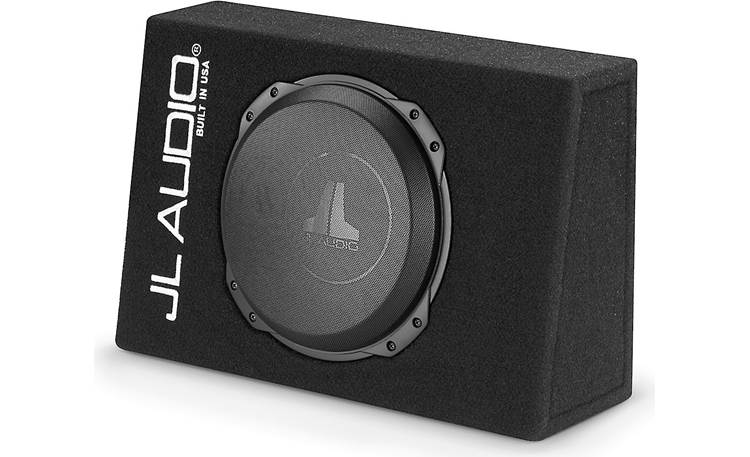

Enclosed Subwoofer System with Single 10TW3-D4 Subwoofer, Black Carpet (400 W, 2 Ω) – Sealed Enclosure
In this sealed Truck PowerWedge subwoofer system, we harness the performance of the 10TW3 to deliver amazing sub-bass from an enclosure that is only 6.25 in. (159 mm) deep at its base and 4.1 in. (104 mm) at the top.
This enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 10TW3 and has been fine-tuned through extensive real-world listening.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with “JL AUDIO” embroidered in silver on the front baffle. A steel mesh grille is included to protect the Subwoofer.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 100 – 400W
Nominal Impedance: 2 Ω
GENERAL SPECIFICATIONS
| Continuous Power Handling (RMS) | 400 W |
| System Nominal Impedance | 2 Ω |
| Enclosure Type | Sealed, truck enclosure |
| Finish | Black carpet |
| Grille Included | Black Steel Mesh |
PHYSICAL SPECIFICATIONS
| External Width (W) | 19 in / 483 mm |
| External Height (H) | 12.375 in / 314 mm |
| External Depth (D1) | 6.25 in / 159 mm |
| External Top Surface Depth (D2) | 4.1 in / 104 mm |
| Net Weight | 21.2 lb / 9.6 kg |
Enclosed Subwoofer System with Single 10TW3-D4 Subwoofer, Black Carpet (400 W, 2 Ω) – Sealed Enclosure
In this sealed Truck PowerWedge subwoofer system, we harness the performance of the 10TW3 to deliver amazing sub-bass from an enclosure that is only 6.25 in. (159 mm) deep at its base and 4.1 in. (104 mm) at the top.
This enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 10TW3 and has been fine-tuned through extensive real-world listening.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with “JL AUDIO” embroidered in silver on the front baffle. A steel mesh grille is included to protect the Subwoofer.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 100 – 400W
Nominal Impedance: 2 Ω
GENERAL SPECIFICATIONS
| Continuous Power Handling (RMS) | 400 W |
| System Nominal Impedance | 2 Ω |
| Enclosure Type | Sealed, truck enclosure |
| Finish | Black carpet |
| Grille Included | Black Steel Mesh |
PHYSICAL SPECIFICATIONS
| External Width (W) | 19 in / 483 mm |
| External Height (H) | 12.375 in / 314 mm |
| External Depth (D1) | 6.25 in / 159 mm |
| External Top Surface Depth (D2) | 4.1 in / 104 mm |
| Net Weight | 21.2 lb / 9.6 kg |
