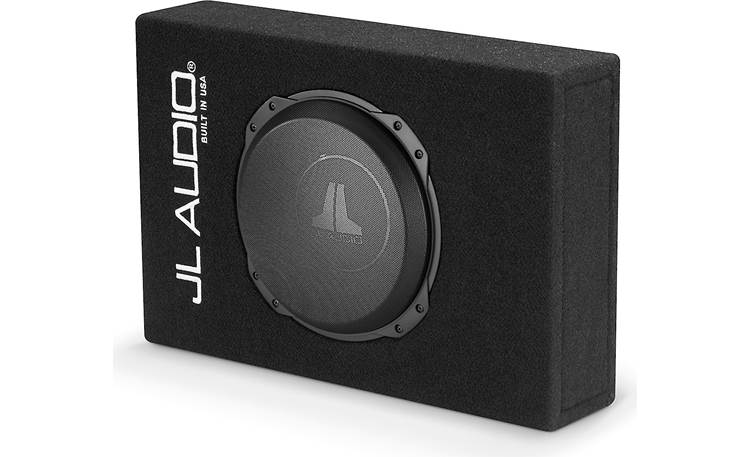

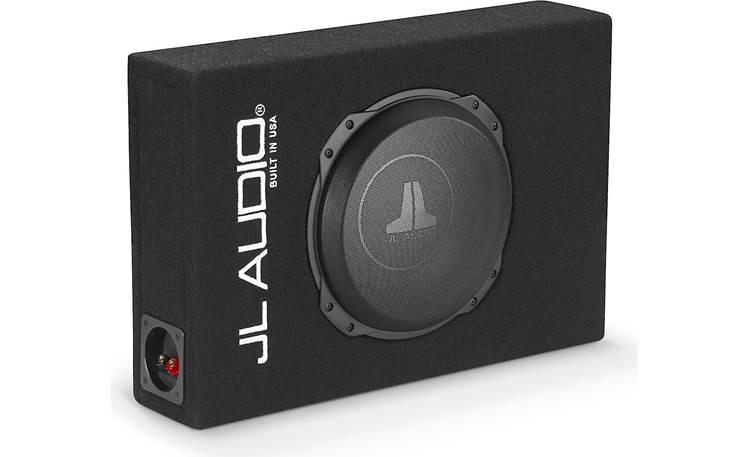

JL Audio CS110LG-TW3 Sealed PowerWedge enclosure with one 10″ TW3 subwoofer
$749.99
Enclosed Subwoofer System with Single 10TW3-D4 Subwoofer, Black Carpet (400 W, 2 Ω) – Sealed Enclosure
In this low-profile PowerWedge subwoofer system, we harness the performance of the 10TW3 to deliver amazing sub-bass from an enclosure that is only 4.5 in. (114 mm) deep.
This low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 10TW3-D4 and has been fine-tuned through extensive real-world listening.
The PowerWedge subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with “JL AUDIO” embroidered in silver on the front baffle. A steel mesh grille is included to protect the Subwoofer.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 100 – 400W
Nominal Impedance: 2 Ω
GENERAL SPECIFICATIONS
| Continuous Power Handling (RMS) | 400 W |
| System Nominal Impedance | 2 Ω |
| Enclosure Type | Sealed |
| Finish | Black carpet |
| Grille Included | Black Steel Mesh |
PHYSICAL SPECIFICATIONS
| External Width (W) | 20.75 in / 527 mm |
| External Height (H) | 14 in / 357 mm |
| External Depth (D1) | 4.5 in / 114 mm |
| Net Weight | 21.2 lb / 9.6 kg |
Enclosed Subwoofer System with Single 10TW3-D4 Subwoofer, Black Carpet (400 W, 2 Ω) – Sealed Enclosure
In this low-profile PowerWedge subwoofer system, we harness the performance of the 10TW3 to deliver amazing sub-bass from an enclosure that is only 4.5 in. (114 mm) deep.
This low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 10TW3-D4 and has been fine-tuned through extensive real-world listening.
The PowerWedge subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with “JL AUDIO” embroidered in silver on the front baffle. A steel mesh grille is included to protect the Subwoofer.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 100 – 400W
Nominal Impedance: 2 Ω
GENERAL SPECIFICATIONS
| Continuous Power Handling (RMS) | 400 W |
| System Nominal Impedance | 2 Ω |
| Enclosure Type | Sealed |
| Finish | Black carpet |
| Grille Included | Black Steel Mesh |
PHYSICAL SPECIFICATIONS
| External Width (W) | 20.75 in / 527 mm |
| External Height (H) | 14 in / 357 mm |
| External Depth (D1) | 4.5 in / 114 mm |
| Net Weight | 21.2 lb / 9.6 kg |
Brand
JL Audio
