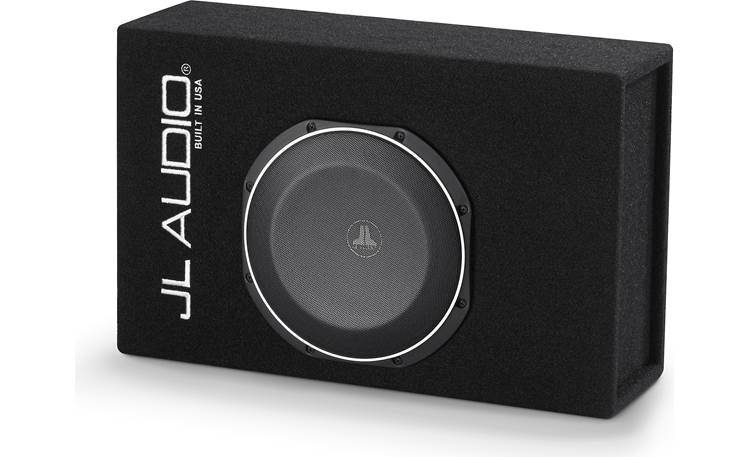

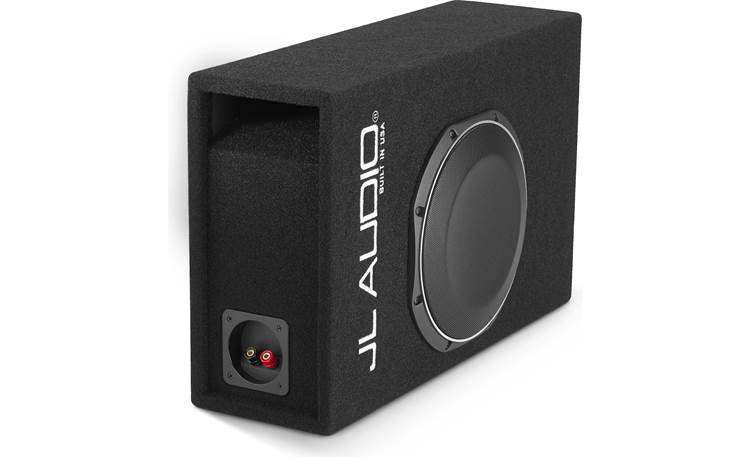

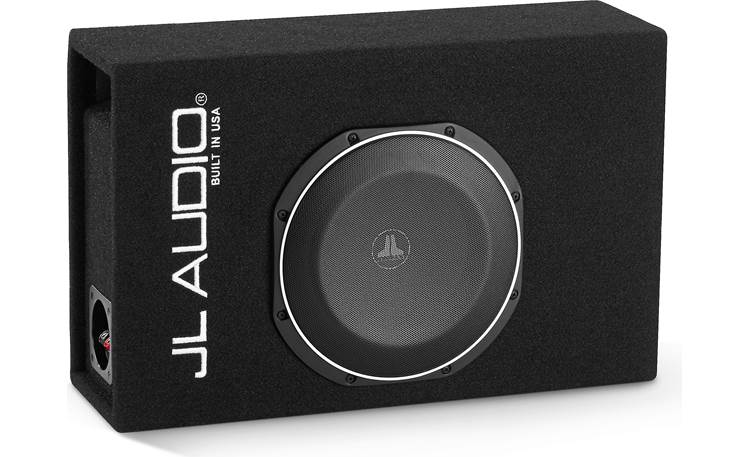

JL Audio CP110LG-TW1-2 MicroSub slot-ported enclosure with one 10″ TW1-2 subwoofer
$649.99
Enclosed Subwoofer System with Single 10TW1-2 Subwoofer, Black Carpet (300 W, 2 Ω) – Ported Enclosure
This incredible MicroSub subwoofer system delivers the kind of output and extension that is normally possible with only much larger systems. The key to its performance lies in the precise tuning of its 10TW1 Subwoofer into an efficient slot-ported design.
Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure’s internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with silver “JL AUDIO” embroidery on front baffle. A steel mesh grille is included to protect the Subwoofer.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 75 – 300W
Nominal Impedance: 2 Ω
GENERAL SPECIFICATIONS
| Continuous Power Handling (RMS) | 300 W |
| System Nominal Impedance | 2 Ω |
| Enclosure Type | Slot-ported, Low-profile |
| Finish | Black carpet |
| Grille Included | Black Steel Mesh |
PHYSICAL SPECIFICATIONS
| External Width (W) | 20.875 in / 530 mm |
| External Height (H) | 13.25 in / 337 mm |
| External Depth (D1) | 6.375 in / 162 mm |
| Net Weight | 25.70 lb / 11.66 kg |
Enclosed Subwoofer System with Single 10TW1-2 Subwoofer, Black Carpet (300 W, 2 Ω) – Ported Enclosure
This incredible MicroSub subwoofer system delivers the kind of output and extension that is normally possible with only much larger systems. The key to its performance lies in the precise tuning of its 10TW1 Subwoofer into an efficient slot-ported design.
Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure’s internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with silver “JL AUDIO” embroidery on front baffle. A steel mesh grille is included to protect the Subwoofer.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 75 – 300W
Nominal Impedance: 2 Ω
GENERAL SPECIFICATIONS
| Continuous Power Handling (RMS) | 300 W |
| System Nominal Impedance | 2 Ω |
| Enclosure Type | Slot-ported, Low-profile |
| Finish | Black carpet |
| Grille Included | Black Steel Mesh |
PHYSICAL SPECIFICATIONS
| External Width (W) | 20.875 in / 530 mm |
| External Height (H) | 13.25 in / 337 mm |
| External Depth (D1) | 6.375 in / 162 mm |
| Net Weight | 25.70 lb / 11.66 kg |
