DB Drive – S1 65CV2 – 6.5 inch Component Speaker
$110.00

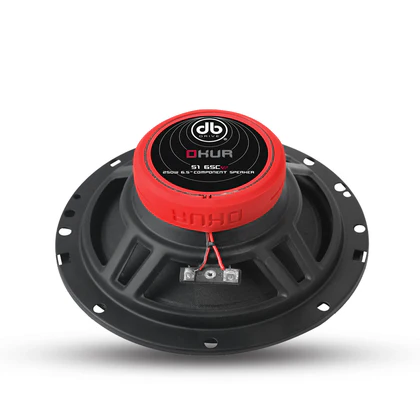

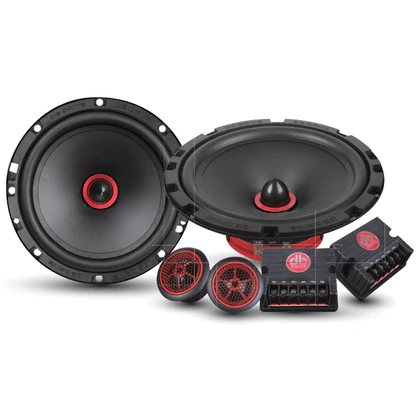

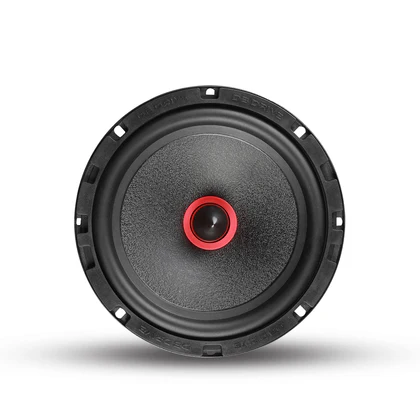

DB Drive Open Show media set, the S1 65CV2 from the Okur line which, thanks to its high performance, will be a great ally to integrate into your professional Open Show audio equipment, check it! The DB Drive 6.5 inch 2-way design media set reaches 250 watts peak (55 watts RMS) at 4 Ohms and is very easy to install due to very little mounting depth. DB Drive S1 65CV2 presents a cast aluminum housing that provides good heat dissipation, and its tweeter design is bi-directional this allows you to move it towards the direction where you need the sound. This DB Drive Open Show media set has outstanding features such as its pressed paper woofer cone, rubber suspension and ferrite magnet, 3/4″ aluminum tweeter with Mylar dome and its passive crossover is 12dB per octave. It has a frequency response of 40 – 20,000 Hz and sensitivity of 90 dB. The DB Drive 6.5 inch media set is the perfect complement to your open show team, as they are designed to deliver more efficiency in a compact size
DB Drive Open Show media set, the S1 65CV2 from the Okur line which, thanks to its high performance, will be a great ally to integrate into your professional Open Show audio equipment, check it! The DB Drive 6.5 inch 2-way design media set reaches 250 watts peak (55 watts RMS) at 4 Ohms and is very easy to install due to very little mounting depth. DB Drive S1 65CV2 presents a cast aluminum housing that provides good heat dissipation, and its tweeter design is bi-directional this allows you to move it towards the direction where you need the sound. This DB Drive Open Show media set has outstanding features such as its pressed paper woofer cone, rubber suspension and ferrite magnet, 3/4″ aluminum tweeter with Mylar dome and its passive crossover is 12dB per octave. It has a frequency response of 40 – 20,000 Hz and sensitivity of 90 dB. The DB Drive 6.5 inch media set is the perfect complement to your open show team, as they are designed to deliver more efficiency in a compact size
Brand
DB Drive
Related Products
Related products
- Car Speakers
JL Audio C6-650 C6 6.5 inch component speaker system
Two-way Component System: 6.5″ (165 mm) Woofer, 1″ (25 mm) Silk Dome Tweeter
Born from shared technologies used in our flagship C7 speakers, the C6-650 component system combines the smoothness and transparency of a premium silk dome tweeter with a top-flight component woofer to create a loudspeaker system with exceptional refinement and dynamic capability.
Benefiting from vast woofer design experience and advanced modeling systems of JL Audio, the 6.5 inch (165 mm) C6 component woofers feature purpose-engineered, cast alloy frames outfitted with our Elevated Frame Cooling technology. A DMA-optimized, forged and machined motor system generates outstanding midbass impact with ultra-low distortion.
The 1″ (25 mm) C6 component tweeters feature edge-driven pure silk dome diaphragms for smooth high-frequency performance with remarkable off-axis response and damping. Neodymium motors and ferrofluid cooling provide high-magnetic flux and improved reliability with extended response from a very compact motor system. Surface- and flush-mount fixtures are included to fit a wide variety of installation applications.
Premium passive crossover networks are included with each C6-650 component system. Featuring four levels of tweeter adjustment, these outboard filter networks are equipped with premium polyester film and electrolytic capacitors as well as low-loss air-core inductors — all accessible beneath a protective, polycarbonate cover. Each C6 passive crossover also includes an advanced electronic tweeter protection circuit designed to minimize the possibility of tweeter failure.
C6 Woofer Features:
• Forged and machined motor plates with DMA-optimized geometries to create linear motor force under power, leading to outstanding midbass impact, linearity and low distortion
• Large diameter, linear profile, flat spider for linear compliance and outstanding excursion capability
• Center cap designed to optimize the high-frequency response of the woofer for seamless transition to a tweeter’s response
• Oversized voice coil for extended power handling capability, minimizing thermal compression and distortion at higher listening levels
• Cast alloy frame with our Elevated Frame Cooling feature
• Includes fine mesh grillesC6 Tweeter Features:
• Edge-driven pure silk dome design delivers smooth high-frequency performance, with excellent off-axis response and damping
• Neodymium motor delivers high magnetic flux from a compact motor design
• Ferrofluid cooling and damping improves reliability and response smoothness
• Includes surface- and flush-mount fixturesWoofer grilles are included, each consisting of a black grille tray and a fine steel mesh grille with an electroformed JL Audio badge logo.
Speakers are sold as a pair.
SKU: JL Audio-C6-650 - Car Speakers
JL Audio C7-100ct C7 Series 1 inch aluminum alloy edge-driven dome tweeter (Single)
1-inch (25 mm) Corundum Ceramic-Coated, Aluminum Dome Component Tweeter
C7 is the pinnacle of JL Audio automotive loudspeaker design, benefiting from our most advanced development tools and a complete commitment to precision manufacturing.
The C7-100ct component tweeter is designed to deliver unparalleled high-frequency performance. Utilizing a corundum ceramic-coated aluminum alloy diaphragm suspended via a treated silk, s-roll surround, it provides spectacularly detailed reproduction of treble frequencies with outstanding off-axis response. Distortion and non-linearities have been minimized through critical optimization of dynamic motor and suspension behaviors.
Passive crossover networks are not included with C7 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning DSP, such as the JL Audio TwK 88 or D8, or a VXi amplifier with built-in DSP, with a dedicated amplifier channel for each C7 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance.
C7-100ct Design Notes:
Dome Diaphragm: Corundum ceramic coated aluminum alloy diaphragm exhibits high stiffness, very low mass and excellent environmental stability. It also helps the tweeter dome to hold its shape and operate as a true piston at higher frequencies, without a penalty in moving mass.Suspension Design: The diaphragm’s motion is centered, sprung and damped by a treated silk, s-roll surround. Ferrofluid in the magnetic gap acts as a rear suspension element in this design. The two combine to provide optimum damping without unduly restricting excursion.
Motor Design: The C7-100ct employs a high-density magnetic circuit with a neodymium magnet and U-Yoke motor topology. An under-hung voice coil is employed, wound with copper-clad aluminum wire onto an aluminum voice coil former. Motor magnetics have been precisely optimized utilizing advanced FEA tools to lower even order distortion and IMD/AMD.
Acoustical Design: The shape of the tweeter housing is designed to boost sensitivity in a very specific bandwidth, helping to flatten the frequency response. It also provides improved control of directivity.
Design Bandwidth:
With 48 dB/octave filters: 3,000 Hz – 30,000 Hz
With 24 dB/octave filters: 4,000 Hz – 30,000 Hz
With 12 dB/octave filters: 5,000 Hz – 30,000 HzSold individually, with flush and surface mounting fixtures and hardware. One 15μF tweeter protection capacitor is also included.
The performance of every C7 driver is tested and verified, then assigned a unique serial number. Register your C7 loudspeaker online to receive a copy of its specific Acoustical Test Report.
SKU: JL Audio-C7-100ct - Car Speakers
JL Audio – C1-690X 6 x 9-inch Coaxial Speaker System
Coaxial Speaker System: 6 x 9-inch (150 x 230 mm) Woofer, 1.0-inch (25 mm) Aluminum Dome Tweeter
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, spacer/adaptor rings are included allowing the C1-690x to be installed in bottom-mount applications.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio’s expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690x is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex? spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter?s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
SKU: JL AUDIO - C1-690X - Car Speakers
JL Audio – C1-075CT 0.75-inch Component Tweeters, Pair
0.75-inch (19 mm) Aluminum Dome Tweeters
C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 0.75-inch aluminum domes with silk suspensions, the C1-075ct component tweeters provide smooth, detailed reproduction of treble frequencies from 4 to 24 kHz.
The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These filters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability.
When it comes to value, C1 is the real deal!
Sold as a pair. Surface-mount and flush-mount fixtures and grilles are included.
SKU: JL AUDIO - C1-075CT
